At a glance
- water disinfection 100% without chemicals using the latest, innovative UV-C LED technology
- disinfection performance up to 99.999%
- up to 8 l/min flow rate
- suitable for submersible and pressure pumps*
- mercury-free and no harmful disinfection by-products
- low power consumption due to disinfection directly at the point of water withdrawal
- easy to retrofit into existing fresh water systems
- incl. connection material (electrical and water side)
- can be used for over 13 years with unlimited switching cycles
- maintenance-free – no lamp replacement necessary
- safe operation through integrated current and function monitoring,
- temperature monitoring, service life monitoring, power supply monitoring and signaling (optical & acoustic)
-
11-18 Volt DC, 0,02 A Standby, 1,2 A Operation, size. BxHxT 113 x 159 x 105 mm, 0,9 Kg
*in exceptional cases (sensor-controlled pumps) the use of an ext. flow sensor may be required
Accessories / Consumables
We stock all items we offer, shipping daily from our warehouse Hamburg.
To place your order please e- mail us.

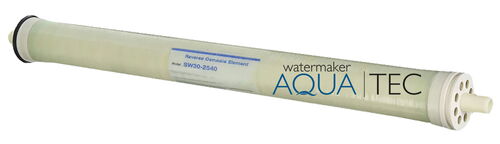

RO Membrane Filmtec
Filmtec SW30-2521, lenght 21" (533 mm)
Filmtec SW30-2540, lenght 40" (1016 mm)
Seawater membrane
excl. VAT
incl. 19% VAT
Seawater membrane Filmtec SW30-2521, lenght 21 inch
€ 329.41
€ 392.00
Seawater membrane Filmtec SW30-2540, lenght 40 inch
€ 333.61
€ 397.00

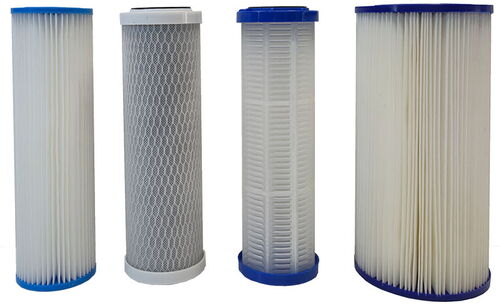

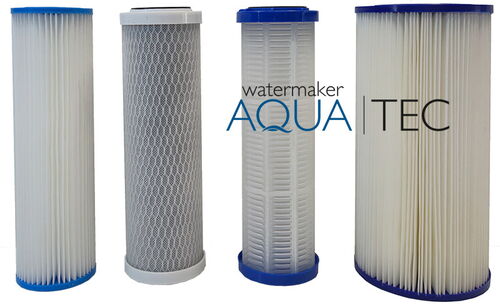

Filter Cartridges
Sediment filters in the seawater inlet protect the high-pressure pump and membrane from suspended particles in the seawater.
Carbon filters prevent the entry of any chlorine present in the tank during fresh water rinsing, which damages the membrane. Carbon filters must be replaced every 3 months, otherwise chlorine separation is no longer guaranteed.
Filter cartridges
excl. VAT
incl. 19% VAT
Sedimentfilter 2.5" x 9.7/8" standard platet 20 micron
€ 7.52
€ 8.95
Sedimentfilter 2.5“ x 9.7/8“ standard platet 5 micron
€ 7.52
€ 8.95
Charcoal filter 2.5" x 9.7/8" standard
€ 8.36
€ 9.95

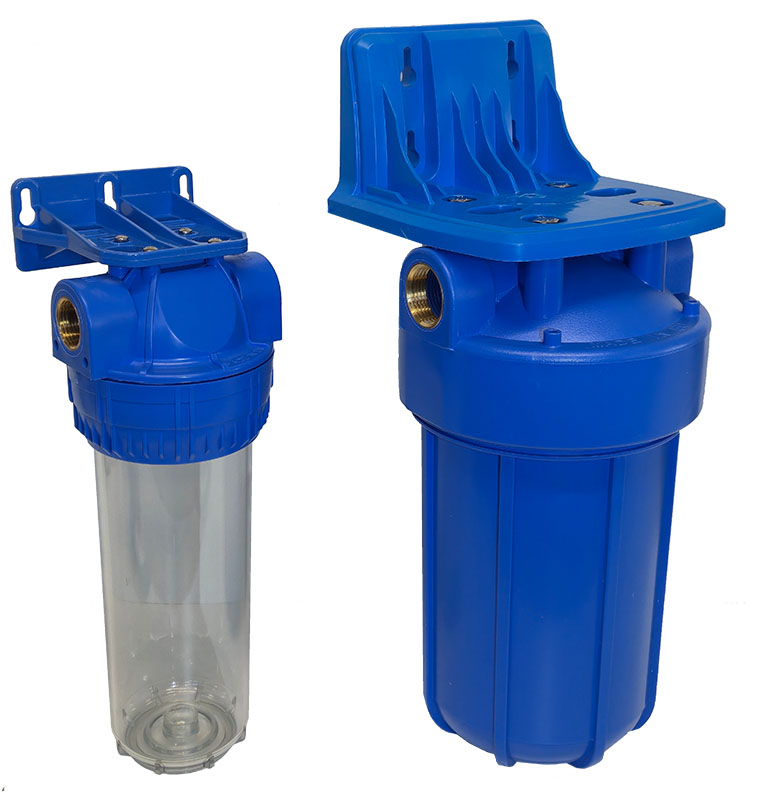

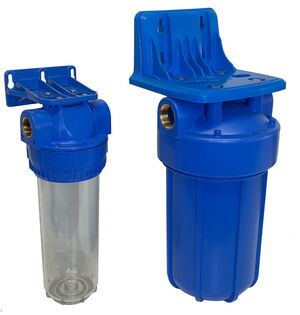

Filterhousings
Filter housing for use on filter cartridges 2.5 "x 9.7/8", the 3 part design ensures maximum leak proof performance. Pressure relief screw and clear housing sump incl. bracket and wrench.
Filterhousings
excl. VAT
incl. 19% VAT
Filterhousings 2.5" x 9.7/8" 3 part, incl. bracket and wrench, 1/2" female
€ 25.,13
€ 29.90
Filterhousings 2.5" x 9.7/8" 3 part, incl. bracket and wrench, 3/4" female
€ 25.13
€ 29.90

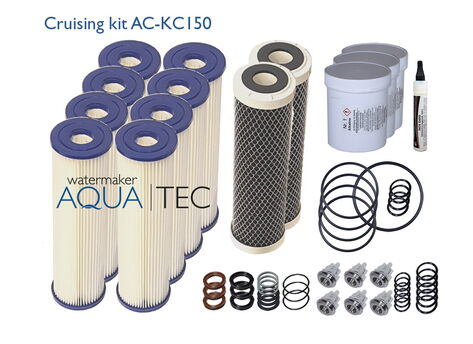

Option when buying an Aquatec Watermaker
We only offer this cruising kit as an additional option when purchasing an Aquatec Watermaker.
The following items are included:
AC/KC plants, 4 pcs each of sediment filters 5 and 20 microns.
DD plants 4 pcs sediment filter 5 micron.
All plants:
2 pcs. carbon filters
3 pcs. preservation and cleaning chemical
1 set of high pressure/low pressure gaskets incl. O-rings
1 set (6 pcs.) of valves incl. O-rings
O-rings for 1 x filter housing
1 set of O-rings (4 pcs.) per pressure tube (membrane housing)
1 pcs Anti-seize paste
Options
excl. VAT
incl 19% VAT
Cruisingkit DD 500
€ 276.47
€ 329.00
Cruisingkit all plants AC/KC
€ 310.08
€ 369.00

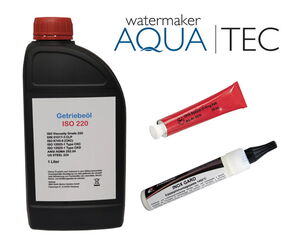

Oil for 3 plunger pumps
for all Aquatec Watermaker high pressure pumps
Anti-seize paste for stainless steel
Prevents seizing of stainless steel screw threads
O-ring grease acid-free
Special O-ring grease
Consumables
excl. VAT
incl. 19% VAT
Oil for high pressure pumps, 1 litre
€ 16.47
€ 19.60
Anti-seize paste 40g, 100g €32.25
€ 12.90
€ 15.35
Special O-ring grease 7g, 100g € 55.57
€ 3.89
€ 4.63

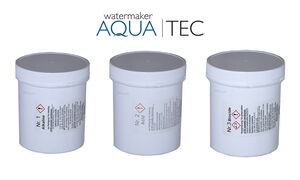

Chemicals
for preserving and cleaning the membranes of Aquatec desalination plants.
Chemicals
excl. VAT
incl. 19% VAT
Biocide for conservation, content 0,6 Kg, price per kg 33,-€
€ 16.64
€ 19.80
Alkaline for cleaning, content 0,4 Kg, price per kg 33,-€
€ 16.64
€ 19.80
Acid for cleaning, content 0,5 Kg, price per kg 33,-€
€ 16.64
€ 19.80
Valve-kit and seal-kit of high pressure head
Spare part to be used in the pump head of the high pressure pump of our Aquatec desalination plants.
When ordering, be sure to specify the serial number of the pump head of the HP pump.
Please refer to the corresponding spare parts list in your plant`s manual.
Spare parts
excl. VAT
incl. 19% VAT
Low pressure and high pressure seals.
€ 57.98
€ 69.00
Kit valves 6 pc.
€ 108.40
€ 129.00
Plunger ceramic 1 pc.
€ 25.13
€ 29.90
UV-C LED water disinfection unit
Fully automatic water disinfection of the tank water
100% without chemical additives using UV-C LED radiation
Installation takes place between the pressurized water system and the tapping point
UV-C
exkl. VAT
inkl. 19% VAT
UV-C LED
€ 503,36
€ 599,-
